It’s been a long time since the last announcement related to a new release of Cortex Analyzers and Responders. The team was head down shaping TheHive 5. However, in the mean time, Cortex’s community did a great job, submitting new contributions for additional connectors.
We spent some time reviewing and testing them, and making sure things are documented. Even if we are not the authors, we do our best to fix bugs, improve existing Analyzers & Responders, and publish new ones.
In addition to new Analyzers, a feature has been added to the framework: extracted observables can now be enriched and contextualised using extra attributes like tags, IOC & sighting flags. VirusTotal & EmlParser are the first 2 Analyzers that benefit from this capability.
A huge thanks to the community and particularly to Peter Juhas, Joe Vasquez, Joe Lazaro and CERT-ARKEA. Here is a summary of this release:
Let’s focus on improvements made on EmlParser and Virutotal analyzers.
Since version 2.0, EmlParser analyzer reports a rendered version of the HTML part, if included in the analyzed email. To make it possible, the program relies on a function named, wkhtmltoimage(), included in the wkhtmltopdf Python library.

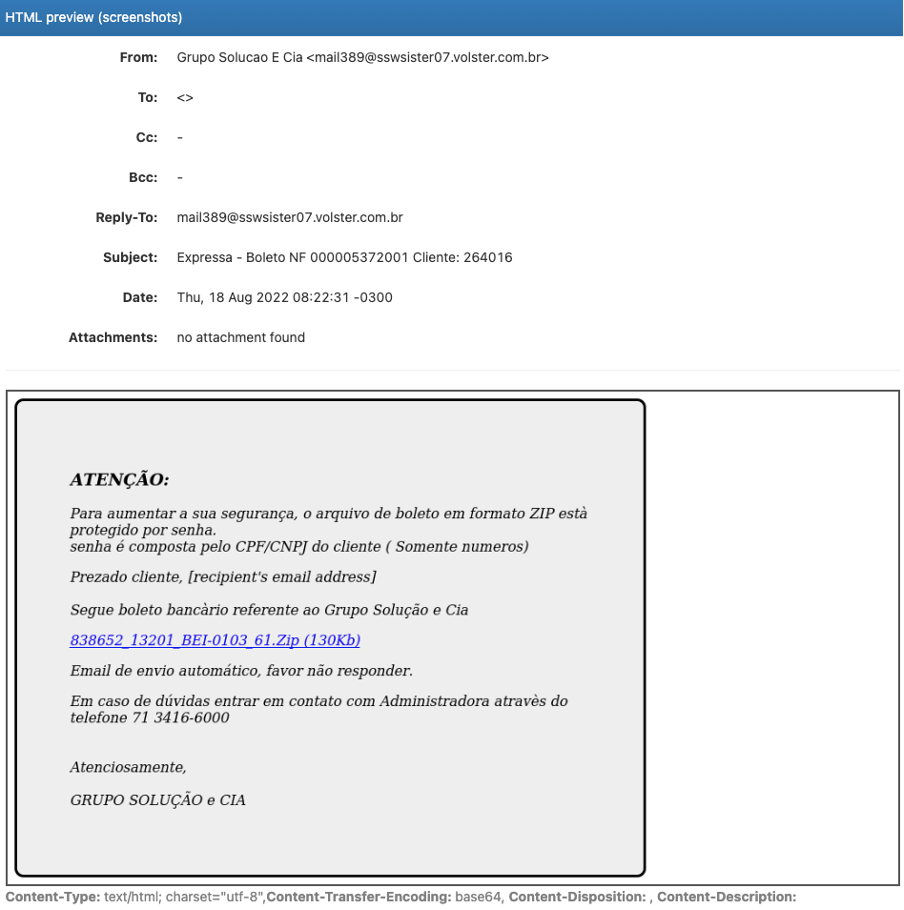

The analyzer’s report now contains an image of the rendered HTML so that analyst can have an exact overview of the rendered html content, like seen in the mail client application; and without stepping on a mine!
Sample source: https://www.malware-traffic-analysis.net/2022/08/19/index.html
The version 2.1 has been improved in several ways.
- Firstly, the analyzer delivers a report even if the rendering fails for unexpected reasons

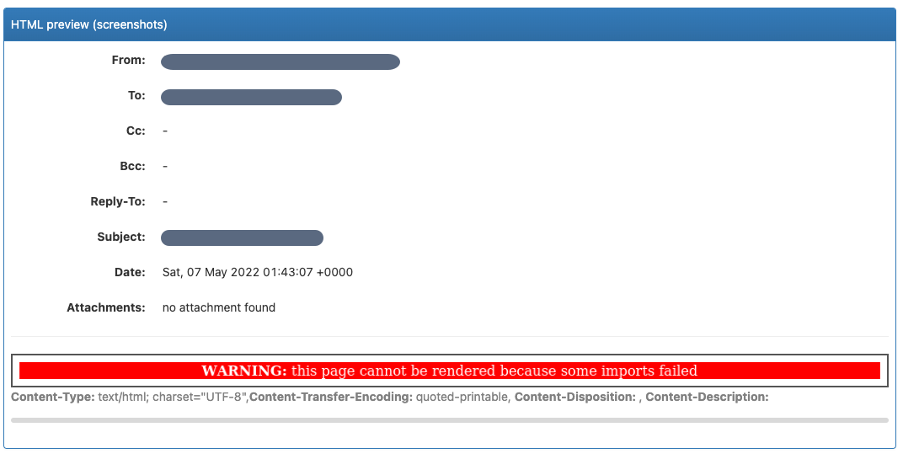

EmlParser 2.1 report: HTML rendering failed for some reason
- Secondly, reported observables have been enriched with contextual tags. For example, a reported email address is now tagged with
header:To or header:From. This is useful to quickly have the context in which it has been added. Same thing for IP address, domains/hostnames and URLs.

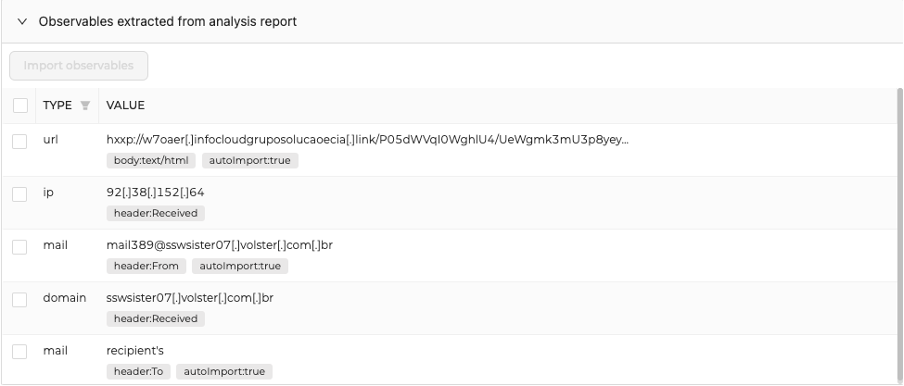

Example of reported observables with tags
- Finally, you might notice a new tag named autoImport:true/fase is added to reported observables. We anticipated the next major version of TheHive, 5.1, so this tag not used yet; TheHive will use this tag to import some of them automatically on successful analysis. With Emlparser, URLs, attachments and email addresses will be imported automatically into the set of observables of the current Case ; ready to pivot on them and run new observables. Stay tuned!
The documentation related to this Analyzer has been updated, and can be found at: https://thehive-project.github.io/Cortex-Analyzers/analyzers/EmlParser/
VirusTotal Analyzer has completely been reviewed and updated to use the version 3 of the API, with the help of the vt_api Python library. This was also the opportunity for us to enrich the report with useful information coming from from VirusTotal.
Most visible improvements can be seen in the long report below:
- The summary is enhanced, with a better overview of the detection rate

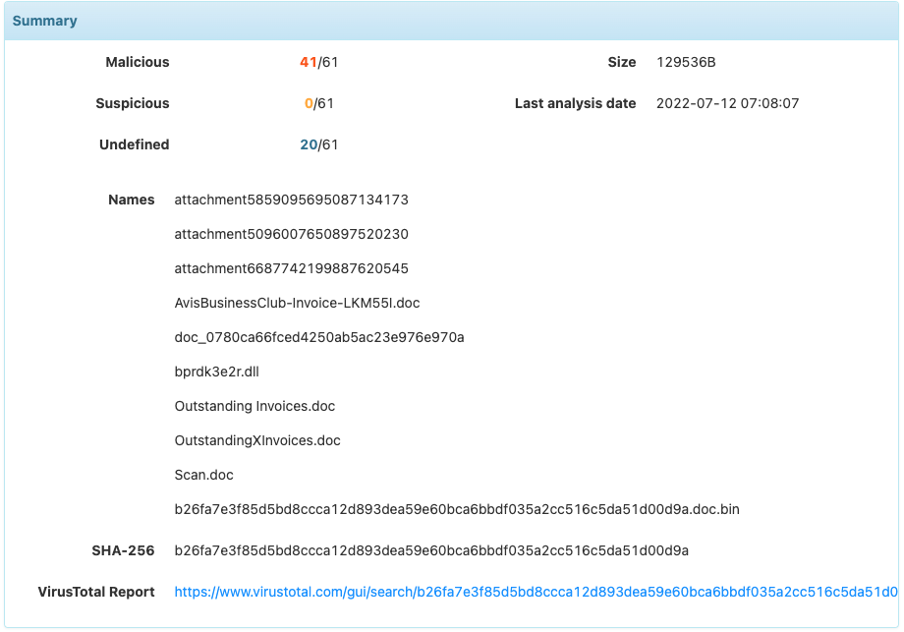

VirusTotal 3.1 report: summary
- Details of engines detection is still present, and has also been enriched

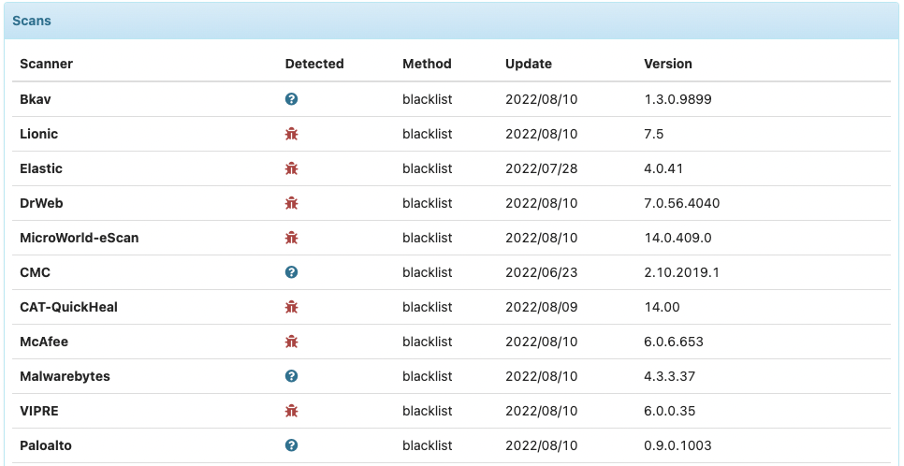

VirusTotal 3.1 report: scans
Depending on your API level of access, some useful extra information can be displayed:
- Yara rules
- IDS rules
- Sandbox verdicts
- Contacted URLs, IP & domain when available

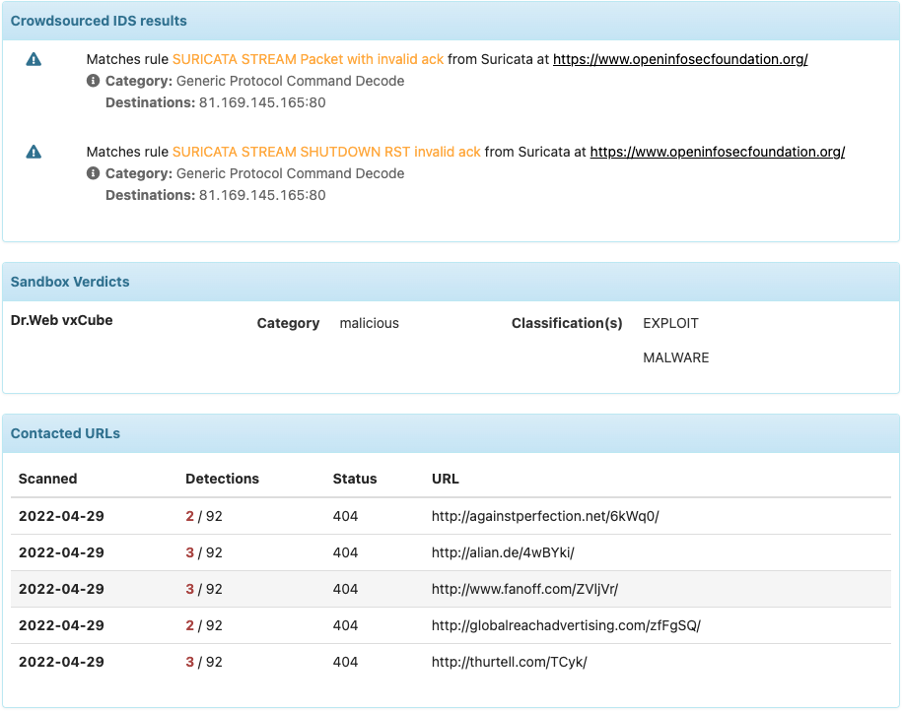

VirusTotal 3.1 report: IDS results, sandbox verdicts and contacted URLs
Extracted Observables
More observables are now extracted from the report and available to enrich the Case. IDS and Yara rules can be imported in the observables list as well.

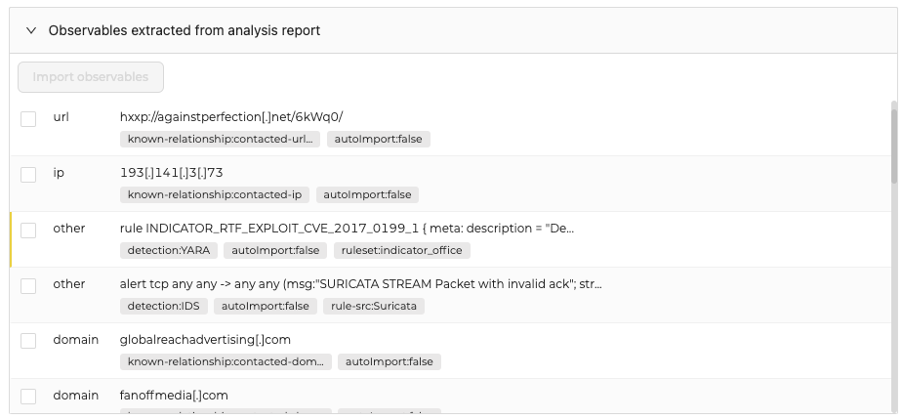

VirusTotal 3.1 report: extracted observables and their tags
Manage your own Analyzers and Responders
Since its version 2.0, Cortex can run Analyzers & Responders as Docker containers. Cortex uses catalogs to download the Docker images of public versions. Catalogs and images are maintained and built by StrangeBee.
There are great benefits to use these docker images:
- There is no need to worry about dependencies as they come with the images,
- A new container is used each time an Analyzer or a Responder is triggered (i.e. a new copy of the program)
Using Docker is easy with public Analyzers & Responders but what about your private connectors? Usually, they are run on the host, on which you need to install cortexutils library, and other dependencies.
To make it easier for you to manage your own docker images of your private connectors, we published a new tool named build-customimages.sh. This program builds and manages your own set of Analyzers & Responders.
It can be found there or in ./Cortex-Analyzers/utils/docker/build-customimages.sh
Learn more in the dedicated documentation: https://thehive-project.github.io/Cortex-Analyzers/admin_guides/manage-private-custom-analyzers-responders/
Using programs on the host
If you are still using the old-style way of using analyzers and responders, run the following commands:
bash
cd path/to/Cortex-Analyzers
git pull
for I in analyzers/*/requirements.txt; do sudo -H pip3 install -U -r $I || true; done
for I in responders/*/requirements.txt; do sudo -H pip3 install -U -r $I || true; done
Once done, make sure to refresh your analyzers and responders in the Cortex WebUI:
- Connect as an
orgadmin and go to the Organization menu
- Click on the Analyzers tab and click on the
Refresh analyzers button
- Do the same for the
Responders tab: click on the Refresh responders button.
Refer to the online Cortex documentation for further details.
You have nothing special to do. Cortex automatically fetches the updated catalog.
New if using TheHive > 5.0.14 and Cortex > 3.1.7, a notification might be displayed in TheHive and in Cortex meaning some operations are required in Cortex:
- TheHive notifies something happens in Cortex

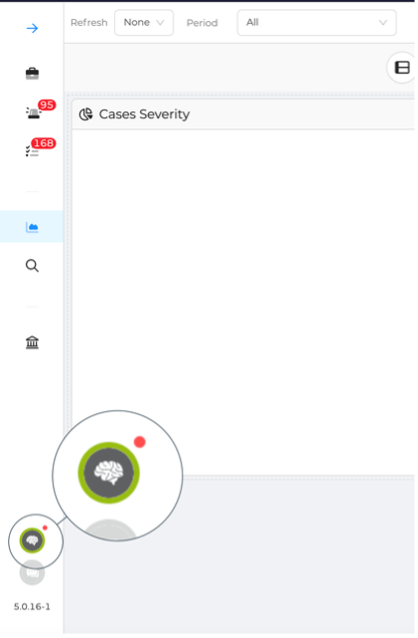

Cortex notification in TheHive
- Log in to Cortex
- Update your configuration, notice the red badge meaning an action is required. Disable old versions, enable new ones.

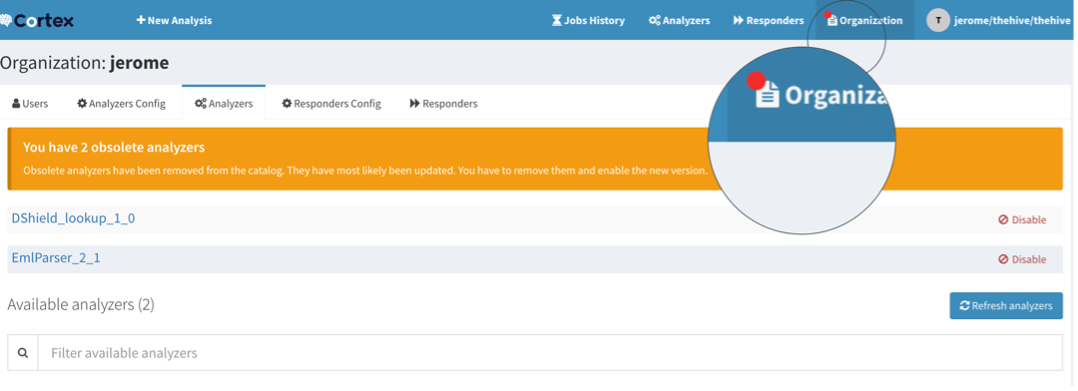

Notification in Cortex: action required
Update Analyzers report templates
If you are using TheHive 5, you must import the new report templates in your instance.
If you’re using TheHive 4.1:
- download the updated package
- log in TheHive using an administrator account
- go to
Admin > Analyzer templates menu
- click on Import templates button and select the downloaded file.
Shall you encounter any difficulty, join our Discord community, or as a customer, contact StrangeBee’s support.
